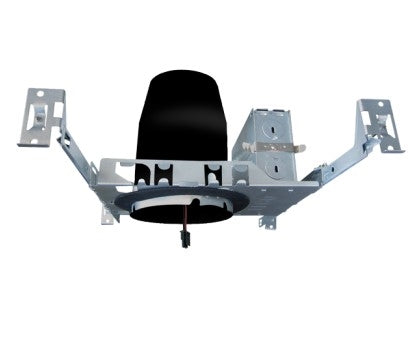

Construction
▪ Single Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions.
▪ Housing accommodates up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications.
▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
▪ Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists.
Junction Box
▪ Positioned to accommodate straight conduit runs.
▪ Seven (7) 1/2" trade size conduit knockouts, Four (4) 3/4" knockouts, Pry-out knockout slots
▪ Four (4) Romex pry-outs with strain relief. See installation sheet for detailed information
Hanger Bars / New Construction

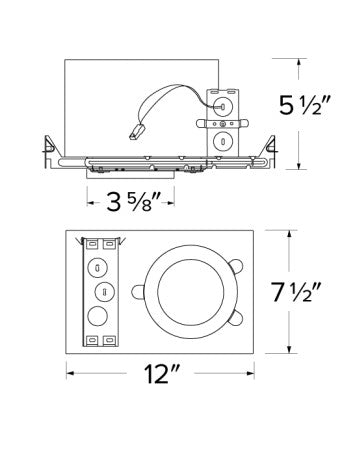

▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Maximum hole cutout is 3 5/8".
▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists.
Electrical
▪ Input Voltage: 120V or 120/277V
Dimmability
▪ Triac/ELV or 0-10V/Triac/ELV
Compatible Trims
▪ Compatible with - For use with ELCO Architectural Koto LED Light Engines (ELK19 & ELK21 Series Only).
Listing
▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims.
▪ UL Listed for Feed Through, Airtight per ASTM E-283, Install a JA8 2016-E Lamp/Luminaire for Title 24 Compliance
▪ UL Listed for Direct Contact with Insulation and Combustible Materials.
