Part Number:EL99ICA

Wattage - 50W Max.
Voltage - 120V
Base Type - Medium Screw (E26)
Bulb Type - PAR Type
Finish - Silver

Height - 5 1/2"
Width - 5 7/8"
Length - 8 5/8"

• 4" Airtight IC Housing Double wall construction
• For Direct Contact with Insulation
• Integral Thermal protector guards against improper lamping
• Adjustable socket bracket allows for different lamp types/sizes and proper and consistent lamp positioning
• Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
• 3 year limited factory warranty
• UL Listed For Damp Locations
• UL Listed For Feed Through
• UL Listed for Direct Contact with Insulation and Combustible Material
• Airtight Per ASTM E-283
• Install a JA8-2016-E Lamp/Luminaire for Title 24 Compliance

Part Number:EL99RA

Wattage - 50W Max.
Voltage - 120V
Base Type - Medium Screw (E26)
Bulb Type - PAR Type/Can Be Retrofitted to Use 120V MR16 Lamps with PSA28 Adapter (Sold Separately!)
Finish - Silver

Height - 5 1/2"
Width - 5 1/4"
Length - 8"

• 4" Remodel Housing
• Integral Thermal protector guards against improper lamping
• Four remodel clips secure housing and accommodate various ceiling thicknesses
• Adjustable socket bracket allows for different lamp types/sizes and proper and consistent lamp positioning
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness
• Pre-wired junction box provided with 1/2" and 3/4" knockouts and with removable access plates
• Can be retrofitted to use 120V MR16 lamps with PSA28 Adapter: Sold Separately!
• Trims sold separately!
• 3 year limited factory warranty
• UL Listed For Damp Locations
• UL Listed For Feed Through
• Airtight Per ASTM E-283
• Install a JA8-2016-E Lamp/Luminaire for Title 24 Compliance

Part Number: EL5RICA

5" Aluminum Airtight IC Housing. Compatible with Medium Base PAR Lamps up to 75W Max.

Wattage - 75w Max.
Voltage - 120v
Includes - Socket Bracket
Bulb Type - Medium Base (E26) PAR Lamps
Trims Sold Separately!

Height - 7 3/8"
Width - 6 5/8"
Length - 12 5/8"

• 5" Airtight IC Remodel Housing with Socket Bracket
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness
• IC Airtight for direct contact with insulation, for use in IC and non-IC applications
• Integral thermal protector guards against improper lamping
• Four remodel clips secure housing and accommodate various ceiling thicknesses
• Adjustable socket bracket allows for different lamp types/sizes and proper and consistent lamp positioning
• Pre-wired junction box provided with 1/2" and 3/4" knockouts and with removable access plate
• Compatible with ELCO 5" Line Voltage PAR trims
• 3 year limited factory warranty
• UL Listed for Feed Through
• UL listed for Direct Contact with insulation and Combustible Material
• UL Listed for Damp/Wet Locations with Wet Location Rated Trims (EL512, EL513, EL514, EL516)
• Airtight per ASTM E-283
• Install a JA8-2016-E Lamp/Luminaire for Tile 24 Compliance

Part Number: EL5ICA

5" Aluminum Airtight IC Housing. Compatible with Medium Base PAR Lamps up to 75W Max.

Wattage - 75w Max.
Voltage - 120v
Includes - Socket Bracket
Bulb Type - Medium Base (E26) PAR Lamps
Trims Sold Separately!

Height - 7 3/8"
Width - 6 5/8"
Length - 12 5/8"

• 5" Airtight IC Universal Housing with Socket Bracket
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness
• IC Airtight for direct contact with insulation, for use in IC and non-IC applications
• Integral thermal protector guards against improper lamping
• Adjustable socket bracket allows for different lamp types/sizes and proper and consistent lamp positioning
• Compatible with ELCO 5" Line Voltage PAR trims
• 3 year limited factory warranty
• UL Listed for Feed Through
• UL listed for Direct Contact with insulation and Combustible Material
• UL Listed for Damp/Wet Locations with Wet Location Rated Trims (EL512, EL513, EL514, EL516)
• Airtight per ASTM E-283
• Install a JA8-2016-E Lamp/Luminaire for Tile 24 Compliance

Part Number: EL7ICA

6" Airtight IC Housing. Compatible with Medium Base PAR Lamps up to 90W Max.

Wattage - 90w Max.
Voltage - 120v
Bulb Type - Medium Base PAR Lamps!
Trims Sold Separately!

Height - 7"
Width - 7"
Length - 9 1/2"

• 6" Airtight IC Universal Housing with Socket Bracket
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness
• IC Airtight for direct contact with insulation, for use in IC and non-IC applications
• Integral thermal protector guards against improper lamping
• Adjustable socket bracket allows for different lamp types/sizes and proper and consistent lamp positioning
• Compatible with ELCO 6" Line Voltage PAR trims
• 3 year limited factory warranty
• UL Listed for Feed Through
• UL listed for Direct Contact with insulation and Combustible Material
• UL Listed for Damp
• Airtight per ASTM E-283
• Install a JA8-2016-E Lamp/Luminaire for Tile 24 Compliance

Part Number: EL7RICA

6" Airtight IC Remodel Housing. Compatible with Medium Base PAR Lamps up to 90W Max.

Wattage - 90w Max.
Voltage - 120v
Bulb Type - Medium Base PAR Lamps!
Trims Sold Separately!

Height - 7 1/2"
Length - 14 1/4"

• 6" Airtight IC Remodel Housing for direct contact with ceiling insulation
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness
• IC Airtight for direct contact with insulation, for use in IC and non-IC applications
• Integral thermal protector guards against improper lamping
• Adjustable socket bracket allows for different lamp types/sizes and proper and consistent lamp positioning
• Wiring box for use with 75°C wire supply, Unit slips through 6 3/8" ceiling cut out
• Four remodel clips secure housing and accommodate various ceiling thicknesses
• Compatible with ELCO 6" Line Voltage PAR trims
• 3 year limited factory warranty
• UL Listed for Feed Through
• UL listed for Direct Contact with insulation and Combustible Material
• UL Listed for Damp
• Airtight per ASTM E-283
• Install a JA8-2016-E Lamp/Luminaire for Tile 24 Compliance

LED Recessed Cans

• Cutout: 5 11/16″
• Suitable for direct contact with insulation
• Certified airtight per ASTM E283, when used with RGK gasket kit (sold separately)
• Rated for branch and chain wiring
• UL and CUL Listed
• Suitable for damp locations
• J-Box and transformer accessible through ceiling

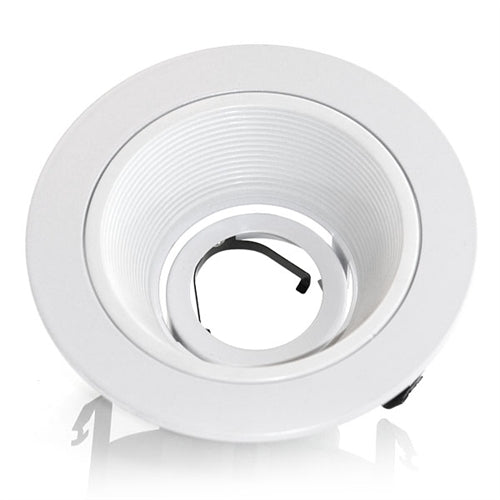

Recessed LED Cans with Baffle and Trims
