3in Recessed

Part Number: RM3W

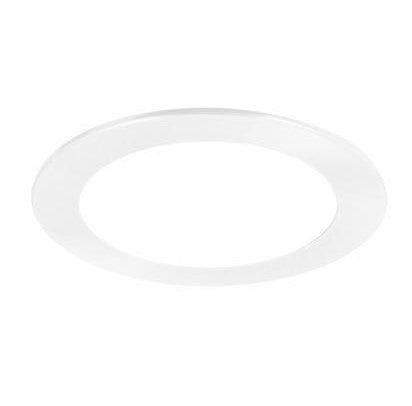

3" Metal Trim Ring.

Metal Trim Ring For 3" MR16 Trims
Compatible Bulb Type - MR16/LED (Not Included)
Finish - White

I.D. - 3 1/8"
O.D. - 4 5/16"

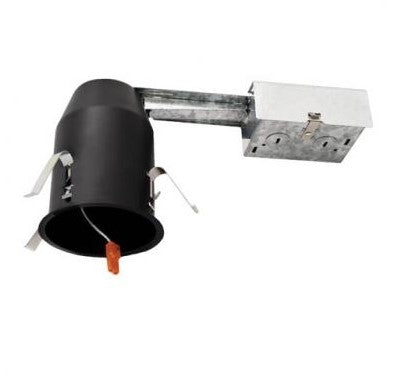

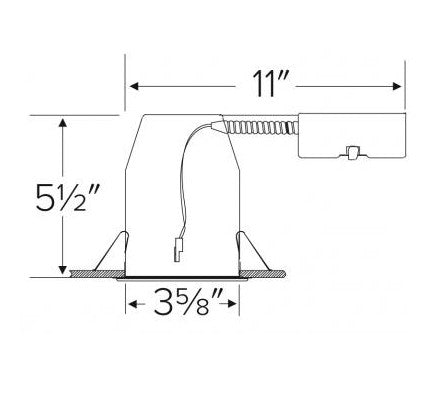

Part Number: EL390RICA

3" Remodel Dedicated LED IC Airtight Housing.

Trims: MR16 LED Lamps with PSA37 or 3" LED Inserts. Sold Separately!

Wattage - 14w
Voltage - 120v

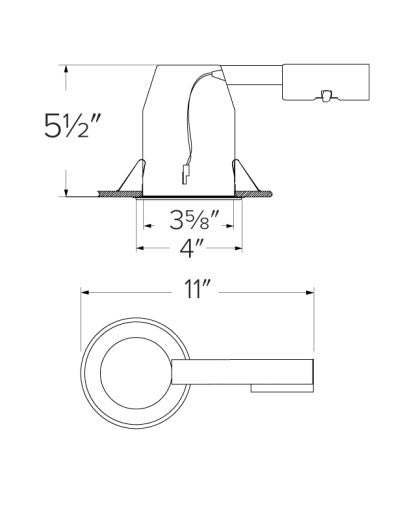

Height - 5 1/2"
Length - 11"

• Single Wall IC Airtight for use in insulated ceilings
• Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
• Flicker Free LED Dimming; Dimmability based on lamp
• Trims and inserts sold separately
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance


  Features Construction/Installation ▪ Single Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions. ▪ Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications. ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements. ▪ Designed for ceiling plenums where 2x6 joists or taller are used. Stamped Galvanized steel frame. Electrical ▪ Input Voltage: 120VAC. Thermally protected against improper lamping. Dimmability ▪ Based on lamp selection Compatible Trims ▪ Compatible with - Designed for use with GU10 MR16 LED Lamps Listing ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims, UL Listed for Feed Through ▪ Airtight per ASTM E-283. Install a JA8-2016-E Lamp/Luminaire for Title 24 Compliance ▪ UL Listed for Direct Contact with Insulation and Combustible Materials.




Part Number: E3LK54ICAD-L

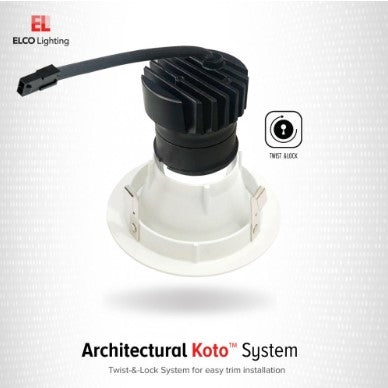

Koto Architectural Maximum Adjustability IC Airtight Housing: 120V (Triac/ELV) or 120/277V (0-10V/Triac/ELV) with optional Emergency Battery Backup.

Trims: Must Be Used With ELCO Koto Architectural LED Light Engines (ELK21 Series Only).

Wattage - 15.7w
Voltage - 120/277v
Lumens - 1,250lm
Dimmable - 0-10V/Triac/ELV (Lutron 1% Dimming)

Height - 5 1/2"
Width - 7 1/2"
Length - 12"

• Double Wall IC Airtight for direct contact with insulation
• Easy-to-Remove driver
• USA designed and assembled
• Flicker Free Dimming
• Optional: 90 minutes, 120/277 VAC, 60Hz, Emergency Backup: Sold Separately!
• 5 year factory warranty (limited)
• UL Listed for Damp Locations and Wet Locations with Select Trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through


  Features Construction ▪ Double Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions. Up to 1,500lm. ▪ Housing accommodates up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications. ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements. ▪ Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists. Junction Box ▪ Positioned to accommodate straight conduit runs. ▪ Seven (7) 1/2" trade size conduit knockouts, Two (2) 3/4" knockouts, One (1) 3/8" knockout. ▪ Four (4) Pry-out knockout slots for easy Romex installation. See installation sheet for detailed information Hanger Bars / New Construction ▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. ▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists. Electrical ▪ Driver is rated for 120V and 277V input (120/277V). High efficiency driver with a power factor >0.95. Note that double wall housings require access from above ceiling for battery maintenance. Dimmability ▪ 3-in-1 dimming. Triac, ELV and 0-10V dimming in one driver. 0-10V dimming down to 5% with a compatible dimmer. Can be specified with Lutron drivers for 0.1% and 1% dimming. Compatible Trims ▪ Compatible with - For use with ELCO Koto Architectural LED Light Engines (ELK21 Series Only). Listing ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims. ▪ UL Listed for Feed Through. ▪ UL Listed for Direct Contact with Insulation and Combustible Materials.




Part Number: EL390ICA

3" New Construction Dedicated LED IC Airtight Housing.

Trims: ELCO 3" LED Inserts, LED Modules, or PSA37 with 3" MR16 Trims. Sold Separately!

Wattage - 14w
Voltage - 120v

Height - 5 1/2"
Length - 8 5/8"
Width - 5 7/8"

• Single Wall IC Airtight for use in insulated ceilings
• Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
• Flicker Free LED Dimming; Dimmability based on lamp
• Trims and inserts sold separately
• 3 year limited factory warranty
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance
•
  Features

  •
    Construction/Installation
    ▪ Single Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions. Steel Housing for greater heat dissipation.
    ▪ Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications.
    ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
    ▪ Designed for ceiling plenums where 2x6 joists or taller are used. Stamped Galvanized steel frame. Maximum hole cut-out 3 5/8".

    Junction Box
    ▪ Positioned to accommodate straight conduit runs.
    ▪ Seven (7) 1/2" trade size conduit knockouts, Four (4) 3/4" knockouts, Pry-out knockout slots, Four (4) Romex pry-outs with strain relief.
    ▪ See installation sheet for detailed information

    Hanger Bars / New Construction
    ▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams.
    ▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists.

    Electrical
    ▪ Input Voltage: 120VAC. Inherently protected.

    Dimmability
    ▪ Based on lamp selection

    Compatible Trims
    ▪ Compatible with - ELCO 3" LED Inserts, LED Modules, or PSA37 with 3" MR16 Trims.

    Listing
    ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims, UL Listed for Feed Through
    ▪ Airtight per ASTM E-283. Install a JA8-2016-E Lamp/Luminaire for Title 24 Compliance
    ▪ UL Listed for Direct Contact with Insulation and Combustible Materials.Features

    •
      Construction/Installation
      ▪ Single Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions. Steel Housing for greater heat dissipation.
      ▪ Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications.
      ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
      ▪ Designed for ceiling plenums where 2x6 joists or taller are used. Stamped Galvanized steel frame. Maximum hole cut-out 3 5/8".

      Junction Box
      ▪ Positioned to accommodate straight conduit runs.
      ▪ Seven (7) 1/2" trade size conduit knockouts, Four (4) 3/4" knockouts, Pry-out knockout slots, Four (4) Romex pry-outs with strain relief.
      ▪ See installation sheet for detailed information

      Hanger Bars / New Construction
      ▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams.
      ▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists.

      Electrical
      ▪ Input Voltage: 120VAC. Inherently protected.

      Dimmability
      ▪ Based on lamp selection

      Compatible Trims
      ▪ Compatible with - ELCO 3" LED Inserts, LED Modules, or PSA37 with 3" MR16 Trims.

      Listing
      ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims, UL Listed for Feed Through
      ▪ Airtight per ASTM E-283. Install a JA8-2016-E Lamp/Luminaire for Title 24 Compliance
      ▪ UL Listed for Direct Contact with Insulation and Combustible Materials.




Part Number: ELK73FICAD

3" New Construction 2-Hour Fire Rated IC Airtight Housing: Koto Commercial Housing 120/277V (0-10V/Triac/ELV).

Trims: Must Be Used With ELCO Commercial Construction Koto LED Light Engines (ELK19 & ELK21 Series Only).

Wattage - 10.5w
Voltage - 120/277v
Lumens - 750lm (ELK19) or 950lm (ELK21)
Dimmable - 0-10V/Triac/ELV

Height - 7 3/4"
Width - 9"
Length - 12 1/2"

• Double Wall IC Airtight for direct contact with insulation
• Lumen output based on module
• 2-Hour Fire and Sound Rated
• 5 year limited factory warranty
• UL Listed for Damp Locations and Wet Locations with Select Trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through


  Features Construction ▪ Double Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions. ▪ Housing accommodates up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications. ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements. ▪ Designed for ceiling plenums where 2x8 joists or taller are used. High strength hanger bars can easily be nailed to joists. Junction Box ▪ Positioned to accommodate straight conduit runs. ▪ Seven (7) 1/2" trade size conduit knockouts, Two (2) 3/4" knockouts, One (1) 3/8" knockout. ▪ Four (4) Pry-out knockout slots for easy Romex installation. See installation sheet for detailed information Hanger Bars / New Construction ▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. ▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists. Electrical ▪ Driver is rated for 120V and 277V input (120/277V). High efficiency driver with a power factor >0.9. Dimmability ▪ Triac, ELV and 0-10V dimming Compatible Trims ▪ Compatible with - For use with ELCO Koto Commercial Construction LED Light Engines (ELK19 & ELK21 Series Only). Listing ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims. ▪ UL Listed for Feed Through. ▪ UL Listed for Direct Contact with Insulation and Combustible Materials.




Part Number: E3LK85ICAD-L

Koto Architectural Maximum Adjustability High Lumen IC Airtight Housing: 120V (Triac/ELV) or 120/277V (0-10V/Triac/ELV) with optional Emergency Battery Backup.

Trims: Must Be Used With ELCO Koto Architectural LED Light Engines (ELK21 Series Only).

Wattage - 18.9w
Voltage - 120/277v
Lumens - 1,500lm
Dimmable - 0-10V/Triac/ELV (Lutron 1% Dimming)

Height - 5 1/2"
Width - 7 1/2"
Length - 12"

• Double Wall IC Airtight for direct contact with insulation
• Easy-to-Remove driver
• USA designed and assembled
• Flicker Free Dimming
• Optional: 90 minutes, 120/277 VAC, 60Hz, Emergency Backup: Sold Separately!
• 5 year factory warranty (limited)
• UL Listed for Damp Locations and Wet Locations with Select Trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
  Features

  •
    Construction
    ▪ Double Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions. Up to 1,500lm.
    ▪ Housing accommodates up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications.
    ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
    ▪ Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists.

    Junction Box
    ▪ Positioned to accommodate straight conduit runs.
    ▪ Seven (7) 1/2" trade size conduit knockouts, Two (2) 3/4" knockouts, One (1) 3/8" knockout.
    ▪ Four (4) Pry-out knockout slots for easy Romex installation. See installation sheet for detailed information

    Hanger Bars / New Construction
    ▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams.
    ▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists.

    Electrical
    ▪ Driver is rated for 120V and 277V input (120/277V). High efficiency driver with a power factor >0.95. Note that double wall housings require access from above ceiling for battery maintenance.

    Dimmability
    ▪ 3-in-1 dimming. Triac, ELV and 0-10V dimming in one driver. 0-10V dimming down to 5% with a compatible dimmer. Can be specified with Lutron drivers for 0.1% and 1% dimming.

    Compatible Trims
    ▪ Compatible with - For use with ELCO Koto Architectural LED Light Engines (ELK21 Series Only).

    Listing
    ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims.
    ▪ UL Listed for Feed Through.
    ▪ UL Listed for Direct Contact with Insulation and Combustible Materials.



Part Number: E3LK85ICAD

Koto Architectural Maximum Adjustability High Lumen IC Airtight Housing: 120V (Triac/ELV) or 120/277V (0-10V/Triac/ELV) with optional Emergency Battery Backup.

Trims: Must Be Used With ELCO Koto Architectural LED Light Engines (ELK21 Series Only).

Wattage - 18.9w
Voltage - 120/277v
Lumens - 1,500lm
Dimmable - 0-10V/Triac/ELV

Height - 5 1/2"
Width - 7 1/2"
Length - 12"

• Double Wall IC Airtight for direct contact with insulation
• Easy-to-Remove driver
• USA designed and assembled
• Flicker Free Dimming
• Optional: 90 minutes, 120/277 VAC, 60Hz, Emergency Backup: Sold Separately!
• 5 year factory warranty (limited)
• UL Listed for Damp Locations and Wet Locations with Select Trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through


  Features Construction ▪ Double Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions. Up to 1,500lm. ▪ Housing accommodates up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications. ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements. ▪ Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists. Junction Box ▪ Positioned to accommodate straight conduit runs. ▪ Seven (7) 1/2" trade size conduit knockouts, Two (2) 3/4" knockouts, One (1) 3/8" knockout. ▪ Four (4) Pry-out knockout slots for easy Romex installation. See installation sheet for detailed information Hanger Bars / New Construction ▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. ▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists. Electrical ▪ Driver is rated for 120V and 277V input (120/277V). High efficiency driver with a power factor >0.95. Note that double wall housings require access from above ceiling for battery maintenance. Dimmability ▪ 3-in-1 dimming. Triac, ELV and 0-10V dimming in one driver. 0-10V dimming down to 5% with a compatible dimmer. Can be specified with Lutron drivers for 0.1% and 1% dimming. Compatible Trims ▪ Compatible with - For use with ELCO Koto Architectural LED Light Engines (ELK21 Series Only). Listing ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims. ▪ UL Listed for Feed Through. ▪ UL Listed for Direct Contact with Insulation and Combustible Materials.




Part Number: E3LK84ICA

Koto Architectural Maximum Adjustability High Lumen IC Airtight Housing: 120V (Triac/ELV) or 120/277V (0-10V/Triac/ELV) with optional Emergency Battery Backup.

Trims: Must Be Used With ELCO Koto Architectural LED Light Engines (ELK21 Series Only).

Wattage - 18.9w
Voltage - 120v
Lumens - 1,500lm
Dimmable - Triac/ELV

Height - 5 1/2"
Width - 7 1/2"
Length - 12"

• Double Wall IC Airtight for direct contact with insulation
• Easy-to-Remove driver
• USA designed and assembled
• Flicker Free Dimming
• Optional: 90 minutes, 120/277 VAC, 60Hz, Emergency Backup: Sold Separately!
• 5 year factory warranty (limited)
• UL Listed for Damp Locations and Wet Locations with Select Trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through


  Features Construction ▪ Double Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions. Up to 1,500lm. ▪ Housing accommodates up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications. ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements. ▪ Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists. Junction Box ▪ Positioned to accommodate straight conduit runs. ▪ Seven (7) 1/2" trade size conduit knockouts, Two (2) 3/4" knockouts, One (1) 3/8" knockout. ▪ Four (4) Pry-out knockout slots for easy Romex installation. See installation sheet for detailed information Hanger Bars / New Construction ▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. ▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists. Electrical ▪ Driver is rated for 120V and 277V input (120/277V). High efficiency driver with a power factor >0.95. Note that double wall housings require access from above ceiling for battery maintenance. Dimmability ▪ 3-in-1 dimming. Triac, ELV and 0-10V dimming in one driver. 0-10V dimming down to 5% with a compatible dimmer. Can be specified with Lutron drivers for 0.1% and 1% dimming. Compatible Trims ▪ Compatible with - For use with ELCO Koto Architectural LED Light Engines (ELK21 Series Only). Listing ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims. ▪ UL Listed for Feed Through. ▪ UL Listed for Direct Contact with Insulation and Combustible Materials.




Part Number : US-RQ103-LED-40K
Wattage : 50w Equivalent

Light and Electric RetroQuik Recessed LED is the patented all-in-one solution.
Everything you need to install a LED Recessed light! Just cut a hole, connect the electrical and install into the ceiling. The Housing, Trim and LED Light - ALL IN

Bulb Type - 3" Recessed LED
Wattage - 6w
Voltage - 120v
Color Temp - 4000K
Lumens - 400lm
CRI - 90
Beam Angle - 95.8°

Outer Diameter: 3 15/16"
Height: 3 1/2"

Cut Template Included
Insulation Compliant (IC)

Features

• • 50 watt equivalent bulb for 10 watts
  • Fits in existing recessed lighting
  • No glare
  • Safe for the environment
  • Projects no heat into a room
  • 5-Year product warranty (limited)
  • Estimated yearly energy cost: $1.05 based on 4 hrs/day, $0.11/kWh

  ADDITIONAL INFORMATION
  • Dimming range from 5% to 100%
  • Risk of fire or electrical shock. Disconnect power at fuse or circuit breaker before inspection, installation or removal.
  • Do not open. No user serviceable parts inside. Warranty void if opened.
  • Installation should be performed only by a qualified electrician in accordance with the National Electrical Code and relevant local code.
  • This recessed luminaire is intended for mounting only in a covered ceiling where only the lighted side of the luminaire is exposed.
  • Not all existing recessed housings will be compatible with this product. To ensure compatibility a test installation should be conducted.
  • Suitable for damp locations. Not for use where directly exposed to the weather or water.
  • To prevent injury or property damage, only use in fixtures that can structurally support a lamp weighing 0.90lb.
  • Not intended for use with emergency exit fixtures or emergency exit lights.
  • To prevent early failure, lamp should be installed in an operating environment ranging from -4 degrees F/-20 degrees C and +95 degrees F/+35 degrees C
  • Use only on 120VAC-60Hz circuits

Part Number: E3LK54ICAD

Koto Architectural Maximum Adjustability IC Airtight Housing: 120V (Triac/ELV) or 120/277V (0-10V/Triac/ELV) with optional Emergency Battery Backup.

Trims: Must Be Used With ELCO Koto Architectural LED Light Engines (ELK21 Series Only).

Wattage - 15.7w
Voltage - 120/277v
Lumens - 1,250lm
Dimmable - 0-10V/Triac/ELV

Height - 5 1/2"
Width - 7 1/2"
Length - 12"

• Double Wall IC Airtight for direct contact with insulation
• Easy-to-Remove driver
• USA designed and assembled
• Flicker Free Dimming
• Optional: 90 minutes, 120/277 VAC, 60Hz, Emergency Backup: Sold Separately!
• 5 year factory warranty (limited)
• UL Listed for Damp Locations and Wet Locations with Select Trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through


  Features Construction ▪ Double Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions. Up to 1,500lm. ▪ Housing accommodates up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications. ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements. ▪ Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists. Junction Box ▪ Positioned to accommodate straight conduit runs. ▪ Seven (7) 1/2" trade size conduit knockouts, Two (2) 3/4" knockouts, One (1) 3/8" knockout. ▪ Four (4) Pry-out knockout slots for easy Romex installation. See installation sheet for detailed information Hanger Bars / New Construction ▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. ▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists. Electrical ▪ Driver is rated for 120V and 277V input (120/277V). High efficiency driver with a power factor >0.95. Note that double wall housings require access from above ceiling for battery maintenance. Dimmability ▪ 3-in-1 dimming. Triac, ELV and 0-10V dimming in one driver. 0-10V dimming down to 5% with a compatible dimmer. Can be specified with Lutron drivers for 0.1% and 1% dimming. Compatible Trims ▪ Compatible with - For use with ELCO Koto Architectural LED Light Engines (ELK21 Series Only). Listing ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims. ▪ UL Listed for Feed Through. ▪ UL Listed for Direct Contact with Insulation and Combustible Materials.




Part Number: E3LK53ICA

Koto Architectural Maximum Adjustability IC Airtight Housing: 120V (Triac/ELV) or 120/277V (0-10V/Triac/ELV) with optional Emergency Battery Backup.

Trims: Must Be Used With ELCO Koto Architectural LED Light Engines (ELK21 Series Only).

Wattage - 15.7w
Voltage - 120v
Lumens - 1,250lm
Dimmable - Triac/ELV

Height - 5 1/2"
Width - 7 1/2"
Length - 12"

• Double Wall IC Airtight for direct contact with insulation
• Easy-to-Remove driver
• USA designed and assembled
• Flicker Free Dimming
• Optional: 90 minutes, 120/277 VAC, 60Hz, Emergency Backup: Sold Separately!
• 5 year factory warranty (limited)
• UL Listed for Damp Locations and Wet Locations with Select Trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
  Features

  •
    Construction
    ▪ Double Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions. Up to 1,500lm.
    ▪ Housing accommodates up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications.
    ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
    ▪ Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists.

    Junction Box
    ▪ Positioned to accommodate straight conduit runs.
    ▪ Seven (7) 1/2" trade size conduit knockouts, Two (2) 3/4" knockouts, One (1) 3/8" knockout.
    ▪ Four (4) Pry-out knockout slots for easy Romex installation. See installation sheet for detailed information

    Hanger Bars / New Construction
    ▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams.
    ▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists.

    Electrical
    ▪ Driver is rated for 120V and 277V input (120/277V). High efficiency driver with a power factor >0.95. Note that double wall housings require access from above ceiling for battery maintenance.

    Dimmability
    ▪ 3-in-1 dimming. Triac, ELV and 0-10V dimming in one driver. 0-10V dimming down to 5% with a compatible dimmer. Can be specified with Lutron drivers for 0.1% and 1% dimming.

    Compatible Trims
    ▪ Compatible with - For use with ELCO Koto Architectural LED Light Engines (ELK21 Series Only).

    Listing
    ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims.
    ▪ UL Listed for Feed Through.
    ▪ UL Listed for Direct Contact with Insulation and Combustible Materials.




Part Number: EL390RICA

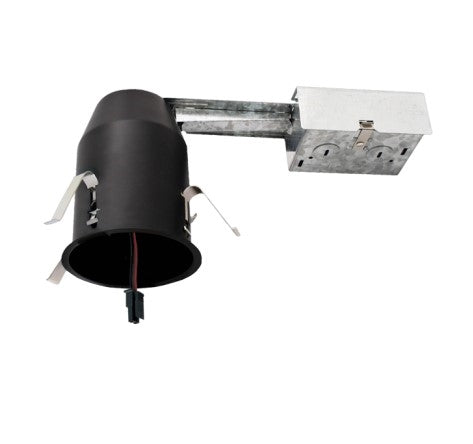

3" Remodel Dedicated LED IC Airtight Housing.

Trims: MR16 LED Lamps with PSA37 or 3" LED Inserts. Sold Separately!

Wattage - 14w
Voltage - 120v

Height - 5 1/2"
Length - 11"

• Single Wall IC Airtight for use in insulated ceilings
• Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
• Flicker Free LED Dimming; Dimmability based on lamp
• Trims and inserts sold separately
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance
  Features

  •
    Construction/Installation
    ▪ Single Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions.
    ▪ Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications.
    ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
    ▪ Designed for ceiling plenums where 2x6 joists or taller are used. Stamped Galvanized steel frame.

    Electrical
    ▪ Input Voltage: 120VAC. Thermally protected against improper lamping.

    Dimmability
    ▪ Based on lamp selection

    Compatible Trims
    ▪ Compatible with - Designed for use with GU10 MR16 LED Lamps

    Listing
    ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims, UL Listed for Feed Through
    ▪ Airtight per ASTM E-283. Install a JA8-2016-E Lamp/Luminaire for Title 24 Compliance
    ▪ UL Listed for Direct Contact with Insulation and Combustible Materials.



Part Number: EL390ICA-EM5

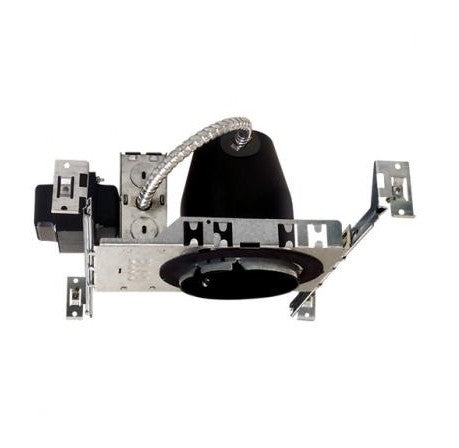

3" New Construction Dedicated LED IC Airtight Housing with Emergency Battery Backup!

Trims: ELCO 3" LED Inserts, LED Modules, or PSA37 with 3" MR16 Trims. Sold Separately!

Wattage - 8w
Voltage - 120/277v (With 277v to 120v Step-Down transformer)

Height - 5 1/2"
Length - 8 5/8"
Width - 5 7/8"

• Single Wall IC Airtight for use in insulated ceilings
• Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
• Flicker Free LED Dimming; Dimmability based on lamp
• Battery Backup: With up to 90 minutes of emergency battery backup
• Trims and inserts sold separately
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance
  Features

  •
    Construction/Installation
    ▪ Single Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions.
    ▪ Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications.
    ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
    ▪ Designed for ceiling plenums where 2x6 joists or taller are used. Stamped Galvanized steel frame.

    Junction Box
    ▪ Positioned to accommodate straight conduit runs.
    ▪ Seven (7) 1/2" trade size conduit knockouts, Four (4) 3/4" knockouts, Pry-out knockout slots, Four (4) Romex pry-outs with strain relief.
    ▪ See installation sheet for detailed information

    Hanger Bars / New Construction
    ▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams.
    ▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists.

    Electrical
    ▪ Input Voltage: 120VAC. Inherently protected. Battery Backup: Up to 90 Minutes of Emergency Power.

    Dimmability
    ▪ Based on lamp selection

    Compatible Trims
    ▪ Compatible with - ELCO 3" LED Inserts, LED Modules, or PSA37 with 3" MR16 Trims.

    Listing
    ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims, UL Listed for Feed Through
    ▪ Airtight per ASTM E-283. Install a JA8-2016-E Lamp/Luminaire for Title 24 Compliance
    ▪ UL Listed for Direct Contact with Insulation and Combustible Materials.
