L4D390RICA - 3" Remodel Dedicated LED IC Airtight Housing - 14W - 120V
L4D390RICA - 3" Remodel Dedicated LED IC Airtight Housing - 14W - 120V
Regular price
$13.93 USD
Regular price
Sale price
$13.93 USD
Unit price
/
per
Couldn't load pickup availability
Part Number: L4D390RICA

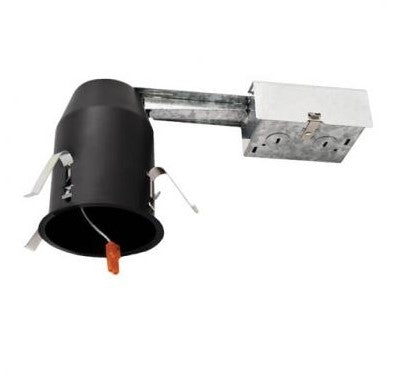

3" Remodel Dedicated LED IC Airtight Housing.
Trims: MR16 LED Lamps or 3" LED Inserts. Sold Separately!
Wattage - 14w
Voltage - 120v

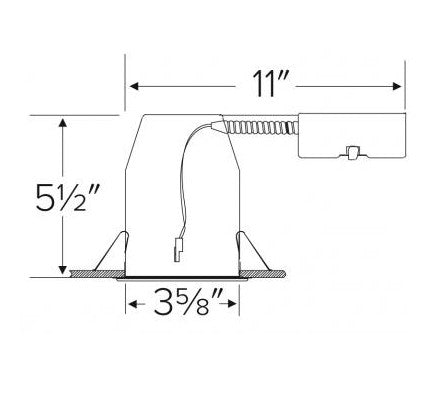

Height - 5 1/2"
Length - 11"
- Single Wall IC Airtight for use in insulated ceilings
- Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
- Flicker Free LED Dimming; Dimmability based on lamp
- Trims and inserts sold separately
- 3 year factory warranty (limited)
- UL Listed for Damp Locations/Wet Locations with select trims
- UL Listed for Direct Contact with insulation and Combustible materials
- UL Listed for Feed Through
- Airtight per ASTM E-283
- Install a JA8-2016-E lamp/luminaire for Title 24 compliance
Features
-
Construction/Installation
▪ Single Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions.
▪ Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications.
▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
▪ Designed for ceiling plenums where 2x6 joists or taller are used. Stamped Galvanized steel frame.
Electrical
▪ Input Voltage: 120VAC. Thermally protected against improper lamping.
Dimmability
▪ Based on lamp selection
Compatible Trims
▪ Compatible with - Designed for use with GU10 MR16 LED Lamps
Listing
▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims, UL Listed for Feed Through
▪ Airtight per ASTM E-283. Install a JA8-2016-E Lamp/Luminaire for Title 24 Compliance
▪ UL Listed for Direct Contact with Insulation and Combustible Materials.
-
