Part Number: E524L1130B

5" Square Maple System LED Light Engine with Baffle Trim.

The ELCO 5" Maple System LED Light Engine is the perfect luminaire for commercial, hospitality, and multi-story applications. Reflector, Baffle, Pull-Down, and Adjustable Pull-Down Light Engines with Ideal quick connect for easy installation.

Triac/ELV/Dimmable

Wattage - 16 Watts
Lumens - 1,100lm
Color Temp - 3000K
CRI - 93+
Rated Life - 50,000 Hours L70
Finish - Black/Black

Height - 2"
Diameter - 6" X 6"

• Frosted lens provides smooth lumen distribution and eliminates LED pixelation
• Deep set LED reduces glare while providing area illumination
• Compatible with ELCO Maple System frame
• Flicker-free dimming, smoothly dims down to 10%
• Polycarbonate diffuser with internal reflector creates a uniform light distribution with minimal glare
• 5 year limited factory warranty
• UL/cUL Listed for Wet Location and Listed for Direct Contact with Insulation and Combustible Material
• Certified under ASTM-E283 for Air Tight Construction
• Life span of 50,000 hours L70
• Title 24 JA8-2016-E Compliant, Meets Energy Star Standards

 Part Number: E524L1130BZ

5" Square Maple System LED Light Engine with Baffle Trim.

The ELCO 5" Maple System LED Light Engine is the perfect luminaire for commercial, hospitality, and multi-story applications. Reflector, Baffle, Pull-Down, and Adjustable Pull-Down Light Engines with Ideal quick connect for easy installation.

Triac/ELV/Dimmable

Wattage - 16 Watts
Lumens - 1,100lm
Color Temp - 3000K
CRI - 93+
Rated Life - 50,000 Hours L70
Finish - Bronze/Bronze

Height - 2"
Diameter - 6" X 6"

• Frosted lens provides smooth lumen distribution and eliminates LED pixelation
• Deep set LED reduces glare while providing area illumination
• Compatible with ELCO Maple System frame
• Flicker-free dimming, smoothly dims down to 10%
• Polycarbonate diffuser with internal reflector creates a uniform light distribution with minimal glare
• 5 year limited factory warranty
• UL/cUL Listed for Wet Location and Listed for Direct Contact with Insulation and Combustible Material
• Certified under ASTM-E283 for Air Tight Construction
• Life span of 50,000 hours L70
• Title 24 JA8-2016-E Compliant, Meets Energy Star Standards

Part Number: E524L1130W

5" Square Maple System LED Light Engine with Baffle Trim.

The ELCO 5" Maple System LED Light Engine is the perfect luminaire for commercial, hospitality, and multi-story applications. Reflector, Baffle, Pull-Down, and Adjustable Pull-Down Light Engines with Ideal quick connect for easy installation.

Triac/ELV/Dimmable

Wattage - 16 Watts
Lumens - 1,100lm
Color Temp - 3000K
CRI - 93+
Rated Life - 50,000 Hours L70
Finish - White/White

Height - 2"
Diameter - 6" X 6"

• Frosted lens provides smooth lumen distribution and eliminates LED pixelation
• Deep set LED reduces glare while providing area illumination
• Compatible with ELCO Maple System frame
• Flicker-free dimming, smoothly dims down to 10%
• Polycarbonate diffuser with internal reflector creates a uniform light distribution with minimal glare
• 5 year limited factory warranty
• UL/cUL Listed for Wet Location and Listed for Direct Contact with Insulation and Combustible Material
• Certified under ASTM-E283 for Air Tight Construction
• Life span of 50,000 hours L70
• Title 24 JA8-2016-E Compliant, Meets Energy Star Standards

Part Number: E524L1140B

5" Square Maple System LED Light Engine with Baffle Trim.

The ELCO 5" Maple System LED Light Engine is the perfect luminaire for commercial, hospitality, and multi-story applications. Reflector, Baffle, Pull-Down, and Adjustable Pull-Down Light Engines with Ideal quick connect for easy installation.

Triac/ELV/Dimmable

Wattage - 16 Watts
Lumens - 1,100lm
Color Temp - 4000K
CRI - 93+
Rated Life - 50,000 Hours L70
Finish - Black/Black

Height - 2"
Diameter - 6" X 6"

• Frosted lens provides smooth lumen distribution and eliminates LED pixelation
• Deep set LED reduces glare while providing area illumination
• Compatible with ELCO Maple System frame
• Flicker-free dimming, smoothly dims down to 10%
• Polycarbonate diffuser with internal reflector creates a uniform light distribution with minimal glare
• 5 year limited factory warranty
• UL/cUL Listed for Wet Location and Listed for Direct Contact with Insulation and Combustible Material
• Certified under ASTM-E283 for Air Tight Construction
• Life span of 50,000 hours L70
• Title 24 JA8-2016-E Compliant, Meets Energy Star Standards

Part Number: E524L1140BZ

5" Square Maple System LED Light Engine with Baffle Trim.

The ELCO 5" Maple System LED Light Engine is the perfect luminaire for commercial, hospitality, and multi-story applications. Reflector, Baffle, Pull-Down, and Adjustable Pull-Down Light Engines with Ideal quick connect for easy installation.

Triac/ELV/Dimmable

Wattage - 16 Watts
Lumens - 1,100lm
Color Temp - 4000K
CRI - 93+
Rated Life - 50,000 Hours L70
Finish - Bronze/Bronze

Height - 2"
Diameter - 6" X 6"

• Frosted lens provides smooth lumen distribution and eliminates LED pixelation
• Deep set LED reduces glare while providing area illumination
• Compatible with ELCO Maple System frame
• Flicker-free dimming, smoothly dims down to 10%
• Polycarbonate diffuser with internal reflector creates a uniform light distribution with minimal glare
• 5 year limited factory warranty
• UL/cUL Listed for Wet Location and Listed for Direct Contact with Insulation and Combustible Material
• Certified under ASTM-E283 for Air Tight Construction
• Life span of 50,000 hours L70
• Title 24 JA8-2016-E Compliant, Meets Energy Star Standards

Part Number: E524L1140W

5" Square Maple System LED Light Engine with Baffle Trim.

The ELCO 5" Maple System LED Light Engine is the perfect luminaire for commercial, hospitality, and multi-story applications. Reflector, Baffle, Pull-Down, and Adjustable Pull-Down Light Engines with Ideal quick connect for easy installation.

Triac/ELV/Dimmable

Wattage - 16 Watts
Lumens - 1,100lm
Color Temp - 4000K
CRI - 93+
Rated Life - 50,000 Hours L70
Finish - White/White

Height - 2"
Diameter - 6" X 6"

• Frosted lens provides smooth lumen distribution and eliminates LED pixelation
• Deep set LED reduces glare while providing area illumination
• Compatible with ELCO Maple System frame
• Flicker-free dimming, smoothly dims down to 10%
• Polycarbonate diffuser with internal reflector creates a uniform light distribution with minimal glare
• 5 year limited factory warranty
• UL/cUL Listed for Wet Location and Listed for Direct Contact with Insulation and Combustible Material
• Certified under ASTM-E283 for Air Tight Construction
• Life span of 50,000 hours L70
• Title 24 JA8-2016-E Compliant, Meets Energy Star Standards

rt Number: E524L2030B

5" Square Maple System LED Light Engine with Baffle Trim.

The ELCO 5" Maple System LED Light Engine is the perfect luminaire for commercial, hospitality, and multi-story applications. Reflector, Baffle, Pull-Down, and Adjustable Pull-Down Light Engines with Ideal quick connect for easy installation.

0-10V/Dimmable

Wattage - 26 Watts
Lumens - 2,000lm
Color Temp - 3000K
CRI - 93+
Rated Life - 50,000 Hours L70
Finish - Black/Black

Height - 2"
Diameter - 6" X 6"

• Frosted lens provides smooth lumen distribution and eliminates LED pixelation
• Deep set LED reduces glare while providing area illumination
• Compatible with ELCO Maple System frame
• Flicker-free dimming, smoothly dims down to 10%
• Polycarbonate diffuser with internal reflector creates a uniform light distribution with minimal glare
• 5 year limited factory warranty
• UL/cUL Listed for Wet Location and Listed for Direct Contact with Insulation and Combustible Material
• Certified under ASTM-E283 for Air Tight Construction
• Life span of 50,000 hours L70
• Title 24 JA8-2016-E Compliant, Meets Energy Star Standards

Part Number: E524L2030BZ

5" Square Maple System LED Light Engine with Baffle Trim.

The ELCO 5" Maple System LED Light Engine is the perfect luminaire for commercial, hospitality, and multi-story applications. Reflector, Baffle, Pull-Down, and Adjustable Pull-Down Light Engines with Ideal quick connect for easy installation.

0-10V/Dimmable

Wattage - 26 Watts
Lumens - 2,000lm
Color Temp - 3000K
CRI - 93+
Rated Life - 50,000 Hours L70
Finish - Bronze/Bronze

Height - 2"
Diameter - 6" X 6"

• Frosted lens provides smooth lumen distribution and eliminates LED pixelation
• Deep set LED reduces glare while providing area illumination
• Compatible with ELCO Maple System frame
• Flicker-free dimming, smoothly dims down to 10%
• Polycarbonate diffuser with internal reflector creates a uniform light distribution with minimal glare
• 5 year limited factory warranty
• UL/cUL Listed for Wet Location and Listed for Direct Contact with Insulation and Combustible Material
• Certified under ASTM-E283 for Air Tight Construction
• Life span of 50,000 hours L70
• Title 24 JA8-2016-E Compliant, Meets Energy Star Standards

Part Number: E524L2030W

5" Square Maple System LED Light Engine with Baffle Trim.

The ELCO 5" Maple System LED Light Engine is the perfect luminaire for commercial, hospitality, and multi-story applications. Reflector, Baffle, Pull-Down, and Adjustable Pull-Down Light Engines with Ideal quick connect for easy installation.

0-10V/Dimmable

Wattage - 26 Watts
Lumens - 2,000lm
Color Temp - 3000K
CRI - 93+
Rated Life - 50,000 Hours L70
Finish - White/White

Height - 2"
Diameter - 6" X 6"

• Frosted lens provides smooth lumen distribution and eliminates LED pixelation
• Deep set LED reduces glare while providing area illumination
• Compatible with ELCO Maple System frame
• Flicker-free dimming, smoothly dims down to 10%
• Polycarbonate diffuser with internal reflector creates a uniform light distribution with minimal glare
• 5 year limited factory warranty
• UL/cUL Listed for Wet Location and Listed for Direct Contact with Insulation and Combustible Material
• Certified under ASTM-E283 for Air Tight Construction
• Life span of 50,000 hours L70
• Title 24 JA8-2016-E Compliant, Meets Energy Star Standards

Part Number: E524L2040B

5" Square Maple System LED Light Engine with Baffle Trim.

The ELCO 5" Maple System LED Light Engine is the perfect luminaire for commercial, hospitality, and multi-story applications. Reflector, Baffle, Pull-Down, and Adjustable Pull-Down Light Engines with Ideal quick connect for easy installation.

0-10V/Dimmable

Wattage - 26 Watts
Lumens - 2,000lm
Color Temp - 4000K
CRI - 93+
Rated Life - 50,000 Hours L70
Finish - Black/Black

Height - 2"
Diameter - 6" X 6"

• Frosted lens provides smooth lumen distribution and eliminates LED pixelation
• Deep set LED reduces glare while providing area illumination
• Compatible with ELCO Maple System frame
• Flicker-free dimming, smoothly dims down to 10%
• Polycarbonate diffuser with internal reflector creates a uniform light distribution with minimal glare
• 5 year limited factory warranty
• UL/cUL Listed for Wet Location and Listed for Direct Contact with Insulation and Combustible Material
• Certified under ASTM-E283 for Air Tight Construction
• Life span of 50,000 hours L70
• Title 24 JA8-2016-E Compliant, Meets Energy Star Standards

Part Number: E524L2040BZ

5" Square Maple System LED Light Engine with Baffle Trim.

The ELCO 5" Maple System LED Light Engine is the perfect luminaire for commercial, hospitality, and multi-story applications. Reflector, Baffle, Pull-Down, and Adjustable Pull-Down Light Engines with Ideal quick connect for easy installation.

0-10V/Dimmable

Wattage - 26 Watts
Lumens - 2,000lm
Color Temp - 4000K
CRI - 93+
Rated Life - 50,000 Hours L70
Finish - Bronze/Bronze

Height - 2"
Diameter - 6" X 6"

• Frosted lens provides smooth lumen distribution and eliminates LED pixelation
• Deep set LED reduces glare while providing area illumination
• Compatible with ELCO Maple System frame
• Flicker-free dimming, smoothly dims down to 10%
• Polycarbonate diffuser with internal reflector creates a uniform light distribution with minimal glare
• 5 year limited factory warranty
• UL/cUL Listed for Wet Location and Listed for Direct Contact with Insulation and Combustible Material
• Certified under ASTM-E283 for Air Tight Construction
• Life span of 50,000 hours L70
• Title 24 JA8-2016-E Compliant, Meets Energy Star Standards

Part Number: E524L2040W

5" Square Maple System LED Light Engine with Baffle Trim.

The ELCO 5" Maple System LED Light Engine is the perfect luminaire for commercial, hospitality, and multi-story applications. Reflector, Baffle, Pull-Down, and Adjustable Pull-Down Light Engines with Ideal quick connect for easy installation.

0-10V/Dimmable

Wattage - 26 Watts
Lumens - 2,000lm
Color Temp - 4000K
CRI - 93+
Rated Life - 50,000 Hours L70
Finish - White/White

Height - 2"
Diameter - 6" X 6"

• Frosted lens provides smooth lumen distribution and eliminates LED pixelation
• Deep set LED reduces glare while providing area illumination
• Compatible with ELCO Maple System frame
• Flicker-free dimming, smoothly dims down to 10%
• Polycarbonate diffuser with internal reflector creates a uniform light distribution with minimal glare
• 5 year limited factory warranty
• UL/cUL Listed for Wet Location and Listed for Direct Contact with Insulation and Combustible Material
• Certified under ASTM-E283 for Air Tight Construction
• Life span of 50,000 hours L70
• Title 24 JA8-2016-E Compliant, Meets Energy Star Standards

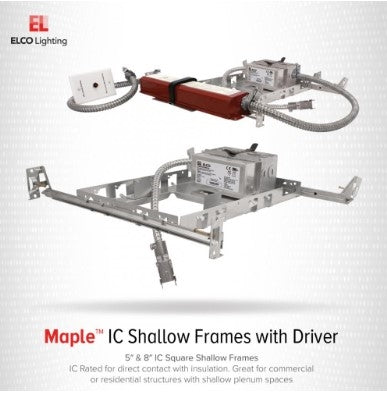

Part Number: E5SQLFU11

5" IC Frame for the Maple System LED Light Engines. For use in insulated ceilings, Damp Location Rated and Wet Location Rated with applicable LED Light Engines. The perfect luminaire solution for commercial, hospitality, and multi-story applications. IC Rated for direct contact with insulation. Great for commercial or residential structures with shallow plenum spaces.

Triac/ELV/Dimming

Trims: ELCO 5" Maple System LED Light Engines. Sold Separately!

Wattage - 16W
Voltage - 120/277v
Lumens - 1,100 Maple System Frame

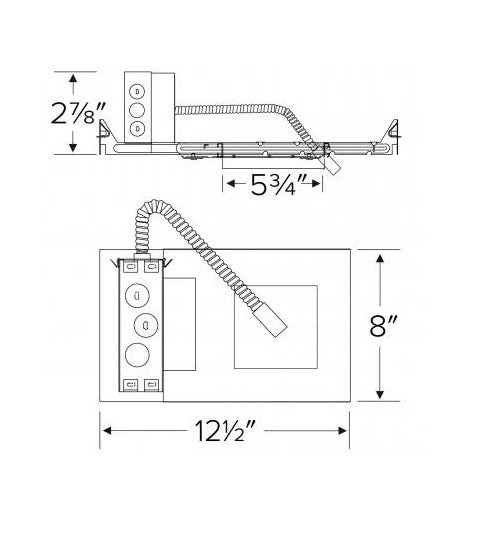

Height - 2 7/8"
Length - 12 1/2"
Width - 8"
Insert Opening - 5 3/4"

• For use in insulated ceilings with ELCO 5" Maple System LED Light Engines: Sold Separately!
• Dimmable Triac (1,100LM units), 0-10V (2,000LM units)
• Optional: 90 Minute Emergency Battery Backup, 120/277 VAC, 60Hz: Sold Separately!
• High Efficiency Driver mounted on J-Box for greater lumen output and easy access from below ceiling
• Suitable for wet location covered ceiling only with E520/E524 Light Engines: Sold Separately!
• 2 7/8" Height Allows for installation in shallow ceilings (when used with non-adjustable light engines)
• 5 year limited factory warranty
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Inserts meet restricted air flow requirements (Per ASTM-283)
• Energy Star Certified
• CA Title 24 JA8-2016.

  Tech Specs     Battery Backup Yes/Not Included/Optional Construction Type Shallow/Insulated Ceilings Hanger Bars Spans Up To 24" And Can Be Repositioned 90° Dimmability Triac/ELV Warranty 5 Year Limited Factory Warranty Knockouts Seven (7) 1/2" Trade Size Conduit Pry-Out Knockouts, Four (4) 3/4" Pry-Out Knockouts, One (1) Pry-Out Knockout, Four (4) Romex Pry-Outs With Strain Relief Approval Type UL - Damp Locations, UL - Wet location (with Select Trims), UL Listed - Feed Through wiring, UL Listed For Direct Contact, CA Title 24 JA8-2016, Energy Star Certified Recessed Size 5" Bulb Type ELCO 5" Maple System LED Light Engines Voltage Rating 120/277V Wattage/Lumens 16W/1,100LM

Part Number: E5SQLFU11D

5" IC Frame for the Maple System LED Light Engines. For use in insulated ceilings, Damp Location Rated and Wet Location Rated with applicable LED Light Engines. The perfect luminaire solution for commercial, hospitality, and multi-story applications. IC Rated for direct contact with insulation. Great for commercial or residential structures with shallow plenum spaces.

0-10V/Dimming

Trims: ELCO 5" Maple System LED Light Engines. Sold Separately!

Wattage - 16W
Voltage - 120/277v
Lumens - 1,100 Maple System Frame
Finish - Silver

Height - 2 7/8"
Length - 12 1/2"
Width - 8"
Insert Opening - 5 3/4"

• For use in insulated ceilings with ELCO 5" Maple System LED Light Engines: Sold Separately!
• Optional: 90 Minute Emergency Battery Backup, 120/277 VAC, 60Hz: Sold Separately!
• High Efficiency Driver mounted on J-Box for greater lumen output and easy access from below ceiling
• Suitable for wet location covered ceiling only with E520/E524 Light Engines: Sold Separately!
• 2 7/8" Height Allows for installation in shallow ceilings (when used with non-adjustable light engines)
• 5 year limited factory warranty
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Inserts meet restricted air flow requirements (Per ASTM-283)
• Energy Star Certified
• CA Title 24 JA8-2016.

  Tech Specs
  Battery Backup	Yes/Not Included/Optional
  Construction Type	Shallow/Insulated Ceilings
  Hanger Bars	Spans Up To 24" And Can Be Repositioned 90°
  Dimmability	0-10V
  Warranty	5 Year Limited Factory Warranty
  Knockouts	Seven (7) 1/2" Trade Size Conduit Pry-Out Knockouts, Four (4) 3/4" Pry-Out Knockouts, One (1) Pry-Out Knockout, Four (4) Romex Pry-Outs With Strain Relief
  Approval Type	UL - Damp Locations, UL - Wet location (with Select Trims), UL Listed - Feed Through wiring, UL Listed For Direct Contact, CA Title 24 JA8-2016, Energy Star Certified
  Recessed Size	5"
  Bulb Type	ELCO 5" Maple System LED Light Engines
  Voltage Rating	120/277V
  Wattage/Lumens	16W/1,100LM

Part Number: E5SQLFU20

5" IC Frame for the Maple System LED Light Engines. For use in insulated ceilings, Damp Location Rated and Wet Location Rated with applicable LED Light Engines. The perfect luminaire solution for commercial, hospitality, and multi-story applications. IC Rated for direct contact with insulation. Great for commercial or residential structures with shallow plenum spaces.

0-10V/Dimming

Trims: ELCO 5" Maple System LED Light Engines. Sold Separately!

Wattage - 28W
Voltage - 120/277v
Lumens - 2,000 Maple System Frame
Finish - Silver

Height - 2 7/8"
Length - 12 1/2"
Width - 8"
Insert Opening - 5 3/4"

• For use in insulated ceilings with ELCO 5" Maple System LED Light Engines: Sold Separately!
• Dimmable Triac (1,100LM units), 0-10V (2,000LM units)
• Optional: 90 Minute Emergency Battery Backup, 120/277 VAC, 60Hz: Sold Separately!
• High Efficiency Driver mounted on J-Box for greater lumen output and easy access from below ceiling
• Suitable for wet location covered ceiling only with E520/E524 Light Engines: Sold Separately!
• 2 7/8" Height Allows for installation in shallow ceilings (when used with non-adjustable light engines)
• 5 year limited factory warranty
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Inserts meet restricted air flow requirements (Per ASTM-283)
• Energy Star Certified
• CA Title 24 JA8-2016.

  Tech Specs
  Battery Backup	Yes/Not Included/Optional
  Construction Type	Shallow/Insulated Ceilings
  Hanger Bars	Spans Up To 24" And Can Be Repositioned 90°
  Dimmability	0-10V
  Warranty	5 Year Limited Factory Warranty
  Knockouts	Seven (7) 1/2" Trade Size Conduit Pry-Out Knockouts, Four (4) 3/4" Pry-Out Knockouts, One (1) Pry-Out Knockout, Four (4) Romex Pry-Outs With Strain Relief
  Approval Type	UL - Damp Locations, UL - Wet location (with Select Trims), UL Listed - Feed Through wiring, UL Listed For Direct Contact, CA Title 24 JA8-2016, Energy Star Certified
  Recessed Size	5"
  Bulb Type	ELCO 5" Maple System LED Light Engines
  Voltage Rating	120/277V
  Wattage/Lumens	28W/2,000LM

Part Number: E5SQLFU20EM1

5" IC Frame for the Maple System LED Light Engines. For use in insulated ceilings, Damp Location Rated and Wet Location Rated with applicable LED Light Engines. The perfect luminaire solution for commercial, hospitality, and multi-story applications. IC Rated for direct contact with insulation. Great for commercial or residential structures with shallow plenum spaces.

0-10V/Dimming

Trims: ELCO 5" Maple System LED Light Engines. Sold Separately!

Wattage - 28W
Voltage - 120/277v
Lumens - 2,000 Maple System Frame
Emergency Lumen Output - 750lm
Finish - Silver/Red

• For use in insulated ceilings with ELCO 5" Maple System LED Light Engines: Sold Separately!
• Dimmable Triac (1,100LM units), 0-10V (2,000LM units)
• 90 Minute Emergency Operation, 120/277 VAC, 60Hz: Included!
• High Efficiency Driver mounted on J-Box for greater lumen output and easy access from below ceiling
• Suitable for wet location covered ceiling only with E520/E524 Light Engines: Sold Separately!
• 2 7/8" Height Allows for installation in shallow ceilings (when used with non-adjustable light engines)
• 5 year limited factory warranty
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Inserts meet restricted air flow requirements (Per ASTM-283)
• Energy Star Certified
• CA Title 24 JA8-2016

  Tech Specs
  Battery Backup	Yes/Included
  Construction Type	Shallow/Insulated Ceilings
  Hanger Bars	Spans Up To 24" And Can Be Repositioned 90°
  Dimmability	0-10V
  Warranty	5 Year Limited Factory Warranty
  Knockouts	Seven (7) 1/2" Trade Size Conduit Pry-Out Knockouts, Four (4) 3/4" Pry-Out Knockouts, One (1) Pry-Out Knockout, Four (4) Romex Pry-Outs With Strain Relief
  Approval Type	UL - Damp Locations, UL - Wet location (with Select Trims), UL Listed - Feed Through wiring, UL Listed For Direct Contact, CA Title 24 JA8-2016, Energy Star Certified
  Recessed Size	5"
  Bulb Type	ELCO 5" Maple System LED Light Engines
  Voltage Rating	120/277V
  Wattage/Lumens	28W/2,000LM/750LM (Emergency Output)

Part Number: EJB4ICA

Maximum 2-Hour Fire rated ceiling assembly can be maintained when installed according to Building Code, Section 714.

Dimensions - 4 1/2" H x 5 1/8" W x 8 1/2" L
Finish - Red/Silver

• New Construction IC Airtight Housing for 2-Hour Fire Rated Ceilings
• Compatible with: LED Light Disks, LED Sky Panels, and LED Ceiling Mount Fixtures
• Junction Box with hanger bars with quick-connect for easy fixture installation
• Round opening for easy fixture installation
• Optional: ELCO Battery Backup: Sold Separately!
• Covered by U.S. Patents
• Install a Compliant Fixture for CA Title 24 Compliance
• IC Rated for direct contact with insulation
• UL Listed under UL514A Standards as a metallic outlet box
• For 2-Hr Fire rated ceilings
• Maximum 2-hour Fire Rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714
  Features

  •
    Bulb Type: Trims and Fixtures sold separately, compatible with Koto Fixtures, LED Disk Lights, LED Sky Panels, and LED Ceiling Mount Fixtures.

    Housing
    ▪ New Construction IC Airtight Housing for 2-hour fire rated ceilings.
    ▪ Round opening for easy hole cutting
    ▪ Maximum 2-hour Fire Rated ceiling assembly can be maintained when installed according to the international Building Code, Section 714. Covered by U.S. Patents

    Installation
    ▪ Hanger bars can be nailed to joists.
    ▪ See installation sheet for detailed information.

    Hanger Bars
    Hanger bars with True Nail for easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for toll-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

    Junction Box
    ▪ Junction box with hanger bars and quick-connect for easy fixture installation.

    Listing
    ▪ For 2-Hour Fire Rated Ceilings
    ▪ IC Airtight Rated for Direct Contact with Insulation
    ▪ UL Listed under UL 514A Standards as a metallic outlet box



Part Number: EJB4RICA

Maximum 2-Hour Fire rated ceiling assembly can be maintained when installed according to Building Code, Section 714.

Dimensions - 4 1/2" H x 4" W
Finish - Red

• Remodel IC Airtight Housing for 2-Hour Fire Rated Ceilings
• Compatible with: Koto Fixtures, LED Light Disks, LED Sky Panels, and LED Ceiling Mount Fixtures
• Pre-installed remodel clips for easy installation
• Round opening for easy fixture installation, Dimmability Based on Lamp
• Optional: ELCO Battery Backup: Sold Separately!
• Covered by U.S. Patents
• Note: Remodel tabs will not be completely covered by trims, painting may be required after installation or use of Oversized Ring (ELJ4OV) to cover tabs
• Install a Compliant Fixture for CA Title 24 Compliance
• IC Rated for direct contact with insulation
• UL Listed under UL514A Standards as a metallic outlet box
• For 2-Hr Fire rated ceilings
• Maximum 2-hour Fire Rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714
  Features

  •
    Bulb Type: Trims and Fixtures sold separately, compatible with Koto Fixtures, LED Disk Lights, LED Sky Panels, and LED Ceiling Mount Fixtures.

    Housing
    ▪ Remodel IC Airtight Housing for 2-hour fire rated ceilings.
    ▪ Round opening for easy hole cutting
    ▪ Maximum 2-hour Fire Rated ceiling assembly can be maintained when installed according to the international Building Code, Section 714. Covered by U.S. Patents

    Installation
    ▪ Remodel tabs for easy installation. Pre-installed remodel clips for easy installation.
    ▪ See installation sheet for detailed information. Note: Remodel tabs will not be completely covered by trims, painting may be required after installation or use of Oversized Ring (ELJ4OV) to cover tabs.

    Dimmability
    ▪ Based on lamp.

    Listing
    ▪ For 2-Hour Fire Rated Ceilings
    ▪ IC Airtight Rated for Direct Contact with Insulation
    ▪ UL Listed under UL 514A Standards as a metallic outlet box
