Part Number: L4D490ICA
4" New Construction dedicated LED housing. Compatible with 4" LED inserts, LED modules
Wattage 18w
Voltage - 120/277v
Bulb Type - LED Modules Only!
Trims Sold Separately!
- Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
- IC Airtight for direct contact with insulation, for use in IC and non-IC applications
- Compatible with Koto Module, LED inserts and PSA37
- Dimmability based on lamp
- 5 year limited factory warranty
- Fireproof with ELCO fire resistant accessories: Sold Separately!
- UL Listed for Feed Through
- UL listed for Direct Contact with insulation and Combustible Material
- UL Listed for Damp/Wet locations with select trims
- Airtight per ASTM E-283
- CA JA8 Title 24 compliant
Features
-
Bulb Type: LED MODULES - PLUG JACK ONLY

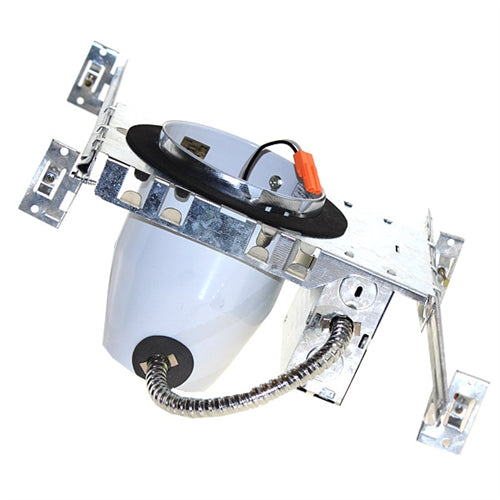

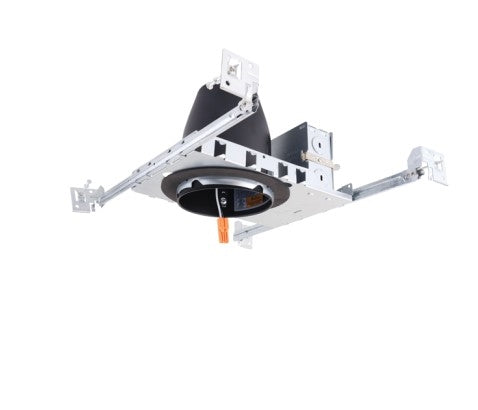

Housing
▪ Single wall painted steel housing gasket for Insulation Compliant and Air tight in insulated ceiling (IC/AT)
▪ Housing can be adjusted for ceiling thickness up to 1"

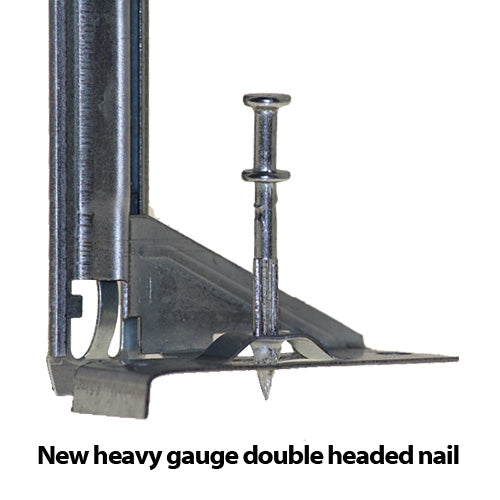

▪ Heavy gauge double head nail for easy removal and strength
Junction Box
▪ Listed for through branch circuit wiring
▪ Contains (1) 1-1/8" and (6) 7/8" knockouts and four Romex pryouts with Romex strain relief
▪ Ground wire provided on J-Box

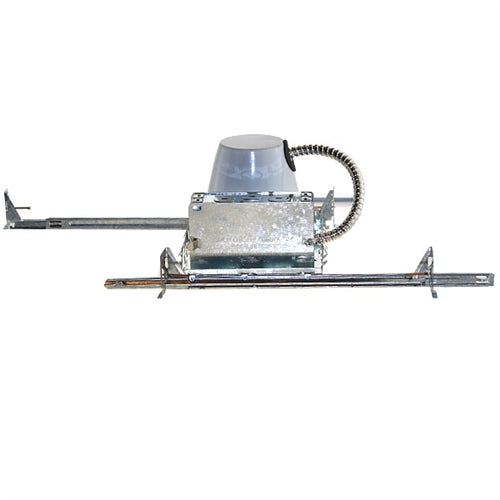

Hanger Bars / New Construction
▪ Pre-installed double headed, heavy gauge nail easily installs in regular lumber or engineered lumber.
▪ Hanger bars are adjustable from 13-5/8" to 25" and can be repositioned 90 degrees
Mounting Frame / New Construction
▪ Galvanized steel construction
Quick Connect "Push in Terminal"
▪ 4 port "Quick connector" for fast and easy wiring.

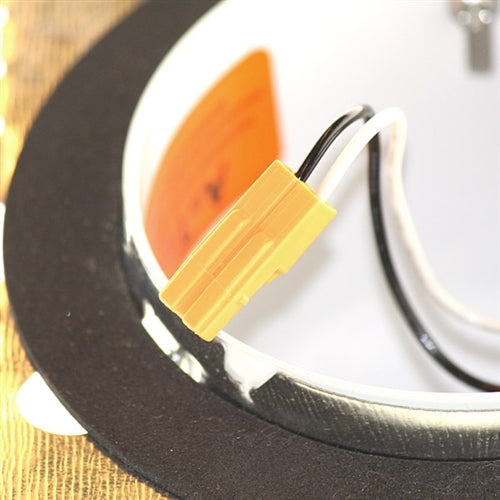

Easy Plug Jack Connector
▪ Allows for simple installation of LED Modules, and ensures safe and efficient installation of LED components
Listing
▪ c UL US
▪ Energy Star and California Title 24 Compliance
▪ The unique "Easy Plug Jack Connector" system also meets other state and national regulatory mandates
-
