Track Fixtures

Part Number: US-TL226-AWH

Wattage - 50w max.
Voltage - 120v
Watts/CCT/Lumens - Based on Bulb Choice
Bulb Type - MR16 GU10/LED MR16 GU10 (not included)
Finish - Architectural White

Length - 3"
Diameter - 2.5"
Max. Extension - 6"

• 3 year limited factory warranty
• See accessories, below, for some bulb suggestions
• For more bulb choices visit our LED Lighting/Light Bulb Sections
• Gimbal Ring/MR16/GU10/LED MR16 GU10
• Install a JA8 Title 24 Bulb for Compliance

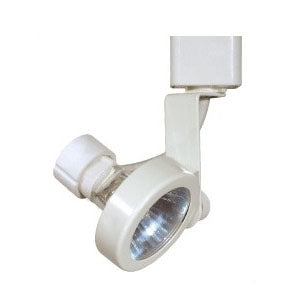

Part Number: US-TL228-AWH

Wattage - 50w Max.
Voltage - 120v
Watts/CCT/Lumens - Based on Bulb Choice
Bulb Type - MR16/GU10/LED MR16/GU10 (not included)
Finish - Architectural White

Length - 2"
Diameter - 2"
Max. Extension - 4.25"

• 3 year limited factory warranty
• See accessories, below, for some bulb suggestions
• For more bulb choices visit our LED Lighting/Light Bulb Sections
• Gimbal Ring/MR16/GU10
• Install a JA8 Title 24 Bulb for Compliance

Part Number: US-TL228-ABK

Wattage - 50w max.
Voltage - 120v
Watts/CCT/Lumens - Based on Bulb Choice
Bulb Type - MR16/GU10/LED MR16/GU10 (not included)
Finish - Architectural Black

Length - 2"
Diameter - 2"
Max. Extension - 4.25"

• 3 year limited factory warranty
• See accessories, below, for some bulb suggestions
• For more bulb choices visit our LED Lighting/Light Bulb Sections
• Gimbal Ring/MR16/GU10
• Install a JA8 Title 24 Bulb for Compliance

Part Number: US-TL213-AWH

Wattage - 75w Max.
Voltage - 120v
Watts/CCT/Lumens - Based on Bulb Choice
Bulb Type - LED PAR30/PAR30 Short Neck (not included)
Finish - Architectural White

Length - 4"
Diameter - 4.625"
Max. Extension - 8.75"

• 3 year limited factory warranty
• See accessories, below, for some bulb suggestions
• For more bulb choices visit our LED Lighting/Light Bulb Sections
• Gimbal Ring/PAR30 Short Neck
• Install a JA8 Title 24 Bulb for Compliance

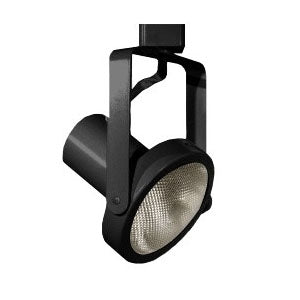

Part Number: US-TL213-ABK

Wattage - 75w Max.
Voltage - 120v
Watts/CCT/Lumens - Based on Bulb Choice
Bulb Type - LED PAR30/PAR30 Short Neck (not included)
Finish - Architectural Black

Length - 4"
Diameter - 4.625"
Max. Extension - 8.75"

• 3 year limited factory warranty
• See accessories, below, for some bulb suggestions
• For more bulb choices visit our LED Lighting/Light Bulb Sections
• Gimbal Ring/PAR30 Short Neck
• Install a JA8 Title 24 Bulb for Compliance

Part Number: US-TL214-ABK

Wattage - 150w Max.
Voltage - 120v
Watts/CCT/Lumens - Based on Bulb Choice
Bulb Type - PAR38/LED PAR38 (not included)
Finish - Architectural Black

Length - 4"
Diameter - 5.75"
Max. Extension - 9.75"

• 3 year limited factory warranty
• See accessories, below, for some bulb suggestions
• For more bulb choices visit our LED Lighting/Light Bulb Sections
• Gimbal Ring/PAR38
• Install a JA8 Title 24 Bulb for Compliance

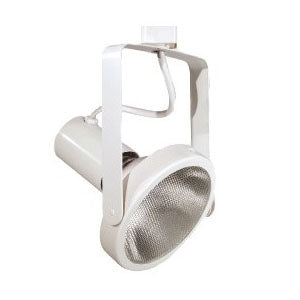

Part Number: US-TL214-AWH

Wattage - 150w Max.
Voltage - 120v
Watts/CCT/Lumens - Based on Bulb Choice
Bulb Type - PAR38/LED PAR38 (not included)
Finish - Architectural White

Length - 4"
Diameter - 5.75"
Max. Extension - 9.75"

• 3 year limited factory warranty
• See accessories, below, for some bulb suggestions
• For more bulb choices visit our LED Lighting/Light Bulb Sections
• Gimbal Ring/PAR38
• Install a JA8 Title 24 Bulb for Compliance

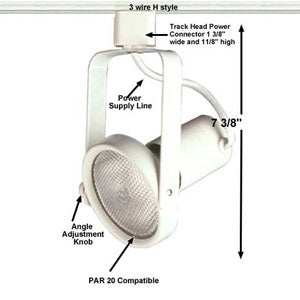

Part Number US-240W

Line Voltage PAR20 gimbal ring track fixture for 3-wire track lighting systems.
Fixture uses a PAR20/LED PAR20 bulb. Spot, Narrow Flood, and Flood.

Voltage - 120v
Wattage/Color Temp/Lumens - Based On Bulb Choice
Bulb Type - PAR20 (not included)
Base - Medium Screw (E26)
Trim Inner Color - White
Trim Outer Color - White

Height - 7.375" (187.3mm)
Width - 4.0 (101.6mm)

• 1 year limited factory warranty
• See Accessories, below, for some bulb suggestions
• For more bulb choices visit our LED Lighting/Light Bulb sections
• Install a JA8 Title 24 bulb for compliance
• Adjustable - Angle/Swivel
