$10.71

Part Number: ELJ4S

Maximum 2-Hour Fire rated ceiling assembly can be maintained when installed according to Building Code, Section 714.

Dimensions - 3 3/4" x 3 3/4" x 2 3/8"
Finish - Red/Silver

  • The ideal solution for ceiling mount fixtures

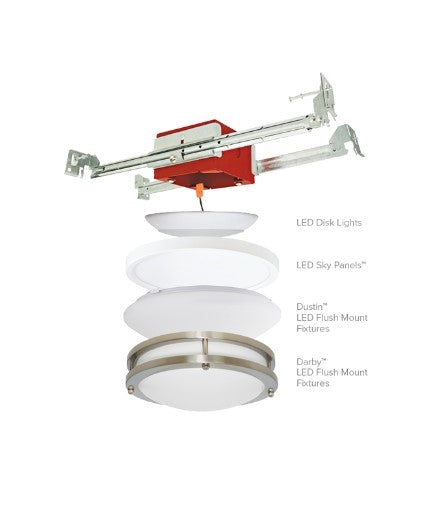

  • Compatible with: LED Light Disks, LED Sky Panels, and LED Ceiling Mount Fixtures
  • Standard 3 1/2" spaced mounting holes
  • Height adjustable bracket for flush mount alignment even after mounting
  • Trims, inserts, and ceiling fixtures sold separately
  • IC Airtight for direct contact with insulation, for use with IC and Non-IC conditions
  • No need to construct a fire rated box
  • Swivel hanger bars for new construction mounting
  • Low profile makes it ideal in shallow plenum applications
  • UL listed under UL 514A Standards as a metallic outlet box, ASTM E283 Certified Airtight
  • Maximum 2-hour Fire Rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714
    Features

    • Bulb Type: Trims and Fixtures sold separately, compatible with LED Disk Lights, LED Sky Panels, and LED Ceiling Mount Fixtures.

      Housing
      ▪ IC Airtight for direct contact with insulation, for use in IC or non-IC conditions
      ▪ Height adjustable bracket for flush alignment even after mounting
      ▪ Standard 3 1/2" spaced mounting holes. No need to construct a fire rated box.

      Installation
      ▪ Designed for shallow ceiling plenums. High strength hanger bars can easily be attached to joists.
      ▪ See installation sheet for detailed information.

      Hanger Bars
      Pre installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for toll-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

      Junction Box
      ▪ Positioned to accommodate straight conduit runs. Four (4) 1/2" trade size conduit knockouts (2 on each side, 2 on top).

      Listing
      ▪ ASTM E-283 Certified Airtight
      ▪ IC Airtight Rated for Direct Contact with Insulation
      ▪ Damp Location Listed, UL Listed under UL 514A Standards as a metallic outlet box
