Products

Part Number: EL2699A

3" Low Voltage Airtight Housing with Magnetic Transformer. Uses 50W Max. 12V MR16 GU/GX5.3 Bi-Pin Lamp. ELCO Alpine System Housings.

Compatible With: ELCO Low Voltage MR16 Trims. Sold Separately!

Wattage - 20w-50w Max.
Input Voltage - 120v-12v
Output Voltage - 12V
Bulb Type - MR16 GU/GX5.3 bi-pin (not included)
Magnetic Transformer
Dimming - MLV Type

Height - 4 3/8"
Length - 7 7/8"
Width - 5 1/4"

• 3" Low Voltage Airtight Universal Housing; Versatile, reliable, and easy to install
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness
• Maximum hole cutout is 3 3/4"
• Magnetic transformer recommended for use with 20W-50W lamps only
• Magnetic Transformer: Thermally protected against improper lamping
• Trims and inserts sold separately
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance

Part Number: EL2699EA

3" Low Voltage Airtight Housing with Electronic Transformer. Uses 50W Max. 12V MR16 GU/GX5.3 Bi-Pin Lamp. ELCO Alpine System Housings.

Compatible With: ELCO Low Voltage MR16 Trims. Sold Separately!

Wattage - 3w-50w Max.
Input Voltage - 120v-12v
Output Voltage - 12V
Bulb Type - MR16 GU/GX5.3 bi-pin LED or Halogen (not included)
Electronic Transformer
Dimming - ELV Type

Height - 4 3/8"
Length - 7 7/8"
Width - 5 1/4"

• 3" Low Voltage Airtight Universal Housing; Versatile, reliable, and easy to install
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness
• Maximum hole cutout is 3 3/4"
• Electronic transformer recommended for use with 3W-50W lamps only
• Electronic Transformer: Thermally protected against improper lamping
• Trims and inserts sold separately
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance

Part Number: EL2699ES

3" Low Voltage Shallow Housing with Electronic Transformer. Up to 50W Max. GU5.3 Bi-Pin Lamp. ELCO Alpine System Housings.

Compatible With: ELCO Low Voltage MR16 Trims. Sold Separately!

Wattage - 50w Max.
Input Voltage - 120v
Output Voltage - 12V
Bulb Type - MR16 GU5.3 bi-pin (not included)
Electronic Transformer
Dimming - ELV Type

Height - 3 1/8"
Length - 8"
Width - 5 1/2"

• 3" Low Voltage Shallow Housing; Versatile, reliable, and easy to install
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness
• Junction box listed for 90° supply wire
• Maximum hole cutout is 3 3/4"
• Integral Thermal protector guards against improper lamping
• Trims and inserts sold separately
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Feed Through
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance

Part Number: EL2699ICA

3" Low Voltage Airtight IC Housing for MR16 Bi-Pin with Magnetic Transformer. Uses 50W Max. 12V MR16 GU/GX5.3 Bi-Pin Lamp. ELCO Alpine System Housings.

Compatible With: ELCO Low Voltage MR16 Trims. Sold Separately!

Wattage - 20-50w Max.
Input Voltage - 120v
Output Voltage - 12V
Bulb Type - MR16 GU/GX5.3 bi-pin
Magnetic Transformer
Dimming - MLV Type

Height - 7 1/4"
Length - 12"
Width - 7 5/8"

• Double Wall IC construction, for use in insulated ceilings
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness
• Use only dimmers specifically designed for use with Magnetic Transformers
• Magnetic transformer recommended for use with 20W-50W lamps only
• Lamp Holder: MR16 GU/GX5.3 Bi-Pin Socket
• Magnetic Transformer: Thermally protected against improper lamping
• Trims and inserts sold separately
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with shower trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance

Part Number: EL2699ICEA

3" Low Voltage Airtight IC Housing for MR16 Bi-Pin with Electronic Transformer. Uses 50W Max. 12V MR16 GU/GX5.3 Bi-Pin LED or Halogen Lamp. ELCO Alpine System Housings.

Compatible With: ELCO Low Voltage MR16 Trims. Sold Separately!

Wattage - 3w-50w Max.
Input Voltage - 120v
Output Voltage - 12V
Bulb Type - MR16 GU/GX5.3 bi-pin LED or Halogen (Not Included)
Electronic Transformer
Dimming - ELV Type

Height - 7 1/4"
Length - 12"
Width - 7 5/8"

• Double Wall IC construction, for use in insulated ceilings
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness
• Use only dimmers specifically designed for use with Electronic Transformers
• Electronic transformer recommended for use with 3W-50W LED or Halogen
• Lamp Holder: MR16 GU/GX5.3 Bi-Pin Socket
• Electronic Transformer: Thermally protected against improper lamping
• Trims and inserts sold separately
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with shower trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance

Part Number: EL2699LDICA

3" New Construction Housing with Magnetic Transformer. Uses a GU5.3 Bi-Pin socket for use with Bi-Pin LED MR16 Lamps. ELCO Alpine System Housings.

Compatible With: ELCO Low Voltage MR16 Trims. Sold Separately!

Wattage - 12w
Voltage - 120v
Bulb Type - MR16 GU/GX5.3 bi-pin LED
Magnetic Transformer
Dimming - MLV Type

Height - 5 1/2"
Length - 10 1/2"
Width - 5 3/8"

• Single Wall IC construction, for use in insulated or non-insulated ceilings
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness
• Flicker Free LED Dimming; Dimmability based on lamp
• LED Bulbs only, no minimum load issues
• Trims and inserts sold separately
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance

Part Number: EL2699LDICEA

3" New Construction Housing with Electronic Transformer. Uses a GU5.3 Bi-Pin socket for use with Bi-Pin LED MR16 Lamps. ELCO Alpine System Housings.

Compatible With: ELCO Low Voltage MR16 Trims. Sold Separately!

Wattage - 12w
Voltage - 120v
Bulb Type - MR16 GU/GX5.3 bi-pin LED
Electronic Transformer
Dimming - ELV Type

Height - 5 1/2"
Length - 10 1/2"
Width - 5 3/8"

• Single Wall IC construction, for use in insulated or non-insulated ceilings
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness
• Flicker Free LED Dimming; Dimmability based on lamp
• LED Bulbs only, no minimum load issues
• Trims and inserts sold separately
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance

Part Number: EL2699LDRICA

3" Remodel Housing for 12V Bi-Pin MR16 LED with Magnetic Transformer. ELCO Alpine System Housings.

Compatible With: ELCO Low Voltage MR16 Trims. Sold Separately!

Wattage - 12w Max.
Voltage - 120v
Bulb Type - MR16 GU/GX5.3 bi-pin LED
Magnetic Transformer
Dimming - MLV Type

Height - 5 3/8"
Length - 13 1/2"

• Single Wall IC construction, for use in insulated ceilings, IC and Non-IC conditions
• Thermally protected magnetic transformer 120V/12V/12W Magnetic AC
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness
• Dimmability based on lamp: Use Only Dimmers Specifically Designed for use with Magnetic Transformers.
• No minimum load issues; Low Voltage Luminaires may produce audible sound when used with dimmers
• Trims and inserts sold separately; Lamp: MR16 GU/GX5.3 Bi-Pin LED/Halogen (Not Included)
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance

Part Number: EL2699RA

3" Low Voltage Airtight Remodel Housing with Magnetic Transformer. Uses 50W Max. 12V MR16 GU/GX5.3 Bi-Pin Lamp. ELCO Alpine System Housings.

Compatible With: ELCO Low Voltage MR16 Trims. Sold Separately!

Wattage - 20w-50w Max.
Input Voltage - 120v
Output Voltage - 12V
Bulb Type - MR16 GU/GX5.3 bi-pin (not included)
Magnetic Transformer
Dimming - MLV Type

Height - 5 1/2"
Length - 13 1/2"

• 3" Low Voltage Airtight Remodel Housing; Single wall construction
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness
• Maximum hole cutout is 3 3/4"
• Magnetic transformer recommended for use with 20W-50W lamps only
• Magnetic Transformer: Thermally protected against improper lamping
• Lamp Holder: MR16 GU/GX5.3 Bi-Pin Socket
• Trims and inserts sold separately
• Note: Use only dimmers specifically designed for use with magnetic transformers.
• Low voltage luminaires may produce audible sound when used with dimmers
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance

Part Number: EL2699REA

3" Low Voltage Airtight Remodel Housing with Electronic Transformer. Uses 50W Max. 12V MR16 GU/GX5.3 Bi-Pin Lamp. ELCO Alpine System Housings.

Compatible With: ELCO Low Voltage MR16 Trims. Sold Separately!

Wattage - 3w-50w Max.
Input Voltage - 120v
Output Voltage - 12V
Bulb Type - MR16 GU/GX5.3 bi-pin LED or Halogen (not included)
Electronic Transformer
Dimming - ELV Type

Height - 5 1/2"
Length - 13 1/2"

• 3" Low Voltage Airtight Remodel Housing; Single wall construction
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness
• Maximum hole cutout is 3 3/4"
• Electronic transformer recommended for use with 3W-50W lamps only
• Electronic Transformer: Thermally protected against improper lamping
• Lamp Holder: MR16 GU/GX5.3 Bi-Pin Socket
• Trims and inserts sold separately
• Low voltage luminaires may produce audible sound when used with dimmers
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance

Part Number: EL2699RES

3" Low Voltage Shallow Remodel Housing with Electronic Transformer. Up to 50W Max. 12V MR16 GU5.3 Bi-Pin Lamp. ELCO Alpine System Housings.

Compatible With: ELCO Low Voltage MR16 Trims. Sold Separately!

Wattage - 50w Max.
Input Voltage - 120v
Output Voltage - 12V
Bulb Type - 12V 50W MR16 GU5.3 (not included)
Electronic Transformer
Dimming - ELV Type

Height - 3 5/8"
Length - 13 1/2"

• 3" Low Voltage Shallow Remodel Housing; Versatile, reliable, and easy to install
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness
• Integral flange secures fixture against ceiling
• Four remodel clips secure housing and accommodate various ceiling thicknesses
• Junction box listed for 90° supply wire
• Maximum hole cutout is 3 3/4"
• Thermally protected against improper lamping
• Trims and inserts sold separately
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Feed Through
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance

Part Number: EL2699S

3" Low Voltage Shallow Housing with Magnetic Transformer. Up to 50W Max. GU5.3 Bi-Pin Lamp. ELCO Alpine System Housings.

Compatible With: ELCO Low Voltage MR16 Trims. Sold Separately!

Wattage - 50w Max.
Input Voltage - 120v
Output Voltage - 12V
Bulb Type - MR16 GU5.3 bi-pin (not included)
Magnetic Transformer
Dimming - MLV Type

Height - 3 1/8"
Length - 8"
Width - 5 1/2"

• 3" Low Voltage Shallow Housing; Versatile, reliable, and easy to install
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness
• Junction box listed for 90° supply wire
• Maximum hole cutout is 3 3/4"
• Integral Thermal protector guards against improper lamping
• Trims and inserts sold separately
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Feed Through
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance

Part Number: EL386ICA

3" Max. Adjustability IC Airtight New Construction Housing

Trims: ELCO 3" PEX Diecast Trims and Koto LED Modules

Voltage - 120v
Dimmable - Triac/ELV

Height - 5 1/2"
Length - 8 3/8"

• IC Airtight for direct contact with insulation
• Triac/ELV Dimming: Dimmability based on lamp
• 120V Quick Connect for easy module installation
• Integrated collar allows for use with 5/8" thick to 1 1/2" thick ceilings
• 5 year factory warranty (limited)

• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a CA Title 24 JA8-2016-E Lamp for compliance
•


  Features

  •
    Construction
    ▪ IC Rated for direct contact with insulation, for use in IC and non-IC conditions. Maximum hole cutout is 3 5/8"
    ▪ Housing accommodates up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications.
    ▪ Aluminum housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements. Stamped galvanized steel frame
    ▪ Designed for ceiling plenums where 2x6 joists or taller are used. High strength swivel hanger bars can easily be nailed to joists.

    Junction Box
    ▪ Positioned to accommodate straight conduit runs.
    ▪ Seven (7) 1/2" trade size conduit knockouts, Four (4) 3/4" knockouts with pry-out knockout slots.
    ▪ Four (4) Romex pry-outs with strain relief. See installation sheet for detailed information

    Hanger Bars / New Construction
    ▪ Pre-installed swivel hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams.
    ▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists.

    Electrical
    ▪ Input Voltage: 120VAC. Inherently protected

    Dimmability
    ▪ Based on lamp selection. Designed for use with ELCO 3" PEX Diecast and Koto LED Modules.

    Compatible Trims
    ▪ Compatible with - Designed for use with ELCO 3" PEX Diecast and Koto LED Modules

    Listing
    ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims, UL Listed for Feed Through
    ▪ cULus Listed for US and Canada. Airtight per ASTM E-283
    ▪ UL Listed for Direct Contact with Insulation and Combustible Materials. Install a JA8-2016-E lamp for CA Title 24 Compliance.

Part Number: EL390ICA

3" New Construction Dedicated LED IC Airtight Housing.

Trims: ELCO 3" LED Inserts, LED Modules, or PSA37 with 3" MR16 Trims. Sold Separately!

Wattage - 14w
Voltage - 120v

Height - 5 1/2"
Length - 8 5/8"
Width - 5 7/8"

• Single Wall IC Airtight for use in insulated ceilings
• Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
• Flicker Free LED Dimming; Dimmability based on lamp
• Trims and inserts sold separately
• 3 year limited factory warranty
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance
•
  Features

  •
    Construction/Installation
    ▪ Single Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions. Steel Housing for greater heat dissipation.
    ▪ Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications.
    ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
    ▪ Designed for ceiling plenums where 2x6 joists or taller are used. Stamped Galvanized steel frame. Maximum hole cut-out 3 5/8".

    Junction Box
    ▪ Positioned to accommodate straight conduit runs.
    ▪ Seven (7) 1/2" trade size conduit knockouts, Four (4) 3/4" knockouts, Pry-out knockout slots, Four (4) Romex pry-outs with strain relief.
    ▪ See installation sheet for detailed information

    Hanger Bars / New Construction
    ▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams.
    ▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists.

    Electrical
    ▪ Input Voltage: 120VAC. Inherently protected.

    Dimmability
    ▪ Based on lamp selection

    Compatible Trims
    ▪ Compatible with - ELCO 3" LED Inserts, LED Modules, or PSA37 with 3" MR16 Trims.

    Listing
    ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims, UL Listed for Feed Through
    ▪ Airtight per ASTM E-283. Install a JA8-2016-E Lamp/Luminaire for Title 24 Compliance
    ▪ UL Listed for Direct Contact with Insulation and Combustible Materials.Features

    •
      Construction/Installation
      ▪ Single Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions. Steel Housing for greater heat dissipation.
      ▪ Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications.
      ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
      ▪ Designed for ceiling plenums where 2x6 joists or taller are used. Stamped Galvanized steel frame. Maximum hole cut-out 3 5/8".

      Junction Box
      ▪ Positioned to accommodate straight conduit runs.
      ▪ Seven (7) 1/2" trade size conduit knockouts, Four (4) 3/4" knockouts, Pry-out knockout slots, Four (4) Romex pry-outs with strain relief.
      ▪ See installation sheet for detailed information

      Hanger Bars / New Construction
      ▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams.
      ▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists.

      Electrical
      ▪ Input Voltage: 120VAC. Inherently protected.

      Dimmability
      ▪ Based on lamp selection

      Compatible Trims
      ▪ Compatible with - ELCO 3" LED Inserts, LED Modules, or PSA37 with 3" MR16 Trims.

      Listing
      ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims, UL Listed for Feed Through
      ▪ Airtight per ASTM E-283. Install a JA8-2016-E Lamp/Luminaire for Title 24 Compliance
      ▪ UL Listed for Direct Contact with Insulation and Combustible Materials.




Part Number: EL390ICA-EM5

3" New Construction Dedicated LED IC Airtight Housing with Emergency Battery Backup!

Trims: ELCO 3" LED Inserts, LED Modules, or PSA37 with 3" MR16 Trims. Sold Separately!

Wattage - 8w
Voltage - 120/277v (With 277v to 120v Step-Down transformer)

Height - 5 1/2"
Length - 8 5/8"
Width - 5 7/8"

• Single Wall IC Airtight for use in insulated ceilings
• Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
• Flicker Free LED Dimming; Dimmability based on lamp
• Battery Backup: With up to 90 minutes of emergency battery backup
• Trims and inserts sold separately
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance
  Features

  •
    Construction/Installation
    ▪ Single Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions.
    ▪ Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications.
    ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
    ▪ Designed for ceiling plenums where 2x6 joists or taller are used. Stamped Galvanized steel frame.

    Junction Box
    ▪ Positioned to accommodate straight conduit runs.
    ▪ Seven (7) 1/2" trade size conduit knockouts, Four (4) 3/4" knockouts, Pry-out knockout slots, Four (4) Romex pry-outs with strain relief.
    ▪ See installation sheet for detailed information

    Hanger Bars / New Construction
    ▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams.
    ▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists.

    Electrical
    ▪ Input Voltage: 120VAC. Inherently protected. Battery Backup: Up to 90 Minutes of Emergency Power.

    Dimmability
    ▪ Based on lamp selection

    Compatible Trims
    ▪ Compatible with - ELCO 3" LED Inserts, LED Modules, or PSA37 with 3" MR16 Trims.

    Listing
    ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims, UL Listed for Feed Through
    ▪ Airtight per ASTM E-283. Install a JA8-2016-E Lamp/Luminaire for Title 24 Compliance
    ▪ UL Listed for Direct Contact with Insulation and Combustible Materials.

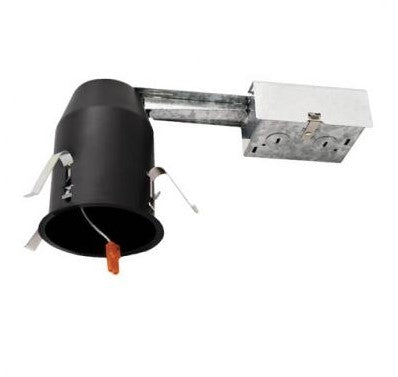

Part Number: EL390RICA

3" Remodel Dedicated LED IC Airtight Housing.

Trims: MR16 LED Lamps with PSA37 or 3" LED Inserts. Sold Separately!

Wattage - 14w
Voltage - 120v

Height - 5 1/2"
Length - 11"

• Single Wall IC Airtight for use in insulated ceilings
• Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
• Flicker Free LED Dimming; Dimmability based on lamp
• Trims and inserts sold separately
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance
  Features

  •
    Construction/Installation
    ▪ Single Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions.
    ▪ Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications.
    ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
    ▪ Designed for ceiling plenums where 2x6 joists or taller are used. Stamped Galvanized steel frame.

    Electrical
    ▪ Input Voltage: 120VAC. Thermally protected against improper lamping.

    Dimmability
    ▪ Based on lamp selection

    Compatible Trims
    ▪ Compatible with - Designed for use with GU10 MR16 LED Lamps

    Listing
    ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims, UL Listed for Feed Through
    ▪ Airtight per ASTM E-283. Install a JA8-2016-E Lamp/Luminaire for Title 24 Compliance
    ▪ UL Listed for Direct Contact with Insulation and Combustible Materials.



Part Number: EL390RICA

3" Remodel Dedicated LED IC Airtight Housing.

Trims: MR16 LED Lamps with PSA37 or 3" LED Inserts. Sold Separately!

Wattage - 14w
Voltage - 120v

Height - 5 1/2"
Length - 11"

• Single Wall IC Airtight for use in insulated ceilings
• Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
• Flicker Free LED Dimming; Dimmability based on lamp
• Trims and inserts sold separately
• 3 year factory warranty (limited)
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• Airtight per ASTM E-283
• Install a JA8-2016-E lamp/luminaire for Title 24 compliance


  Features Construction/Installation ▪ Single Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions. ▪ Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications. ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements. ▪ Designed for ceiling plenums where 2x6 joists or taller are used. Stamped Galvanized steel frame. Electrical ▪ Input Voltage: 120VAC. Thermally protected against improper lamping. Dimmability ▪ Based on lamp selection Compatible Trims ▪ Compatible with - Designed for use with GU10 MR16 LED Lamps Listing ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims, UL Listed for Feed Through ▪ Airtight per ASTM E-283. Install a JA8-2016-E Lamp/Luminaire for Title 24 Compliance ▪ UL Listed for Direct Contact with Insulation and Combustible Materials.




Part Number: EL39FICA-7

3" Fire Rated New Construction LED housing. 2-Hour fire rated.

Trims: MR16 LED Lamps with Quick Connect Base or 3" LED inserts. Sold Separately!

Wattage - 14w
Voltage - 120/277v

Height - 7 3/4"
Length - 12 1/2"
Width - 9"

• IC Airtight for direct contact with insulation
• Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
• 120V Quick Connect for easy module installation
• Trims and inserts sold separately
• Emergency Battery Pack: Optional 90 minute battery pack available with test indicator switch. Note that double wall housings require Access from above ceiling for battery maintenance
• 5 year factory warranty (limited)
• Integrated Non-combustible insulation acts as a sound barrier minimizing sound transfer between floors
• UL Listed for Damp Locations/Wet Locations with select trims
• UL Listed for Direct Contact with insulation and Combustible materials
• UL Listed for Feed Through
• STC/IIC Sound Rated
• UL Listed for 2-hour Fire Resistance to meet and exceed strict fire safety codes
• Meets CA Title 24 requirements. Energy Star Certified
•


  Features Construction/Installation ▪ Double Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions. ▪ Housing accommodates up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications. ▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements. ▪ Designed for ceiling plenums where 2x8 joists or taller are used. Junction Box ▪ Positioned to accommodate straight conduit runs. ▪ Seven (7) 1/2" trade size conduit knockouts, Two (2) 3/4" knockouts, One (1) 3/8" knockout. ▪ Four (4) Pry-outs knockouts slots for easy Romex installation. See installation sheet for detailed information Hanger Bars / New Construction ▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. ▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists. Electrical ▪ Input Voltage: 120VAC. Inherently protected Driver ▪ Driver is rated for 120v and 277v input(120/277V). High efficiency driver with a power factor > 0.9. Compatible Trims ▪ Compatible with - MR16 LED Lamps with Quick Connect base or 3" LED Inserts. Listing ▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims, UL Listed for Feed Through ▪ Energy Star Certified. STC/IIC Sound Rated ▪ UL Listed for Direct Contact with Insulation and Combustible Materials. Meets CA Title 24 requirements
